240W 2.03A Photovoltaic Curtain Wall Transparent Facade Solar Panel Module 1000V

240W 2.03A Photovoltaic Curtain Wall Transparent Facade Solar Panel Module 1000V

Model Number: Custom
MOQ: 100 pcs
Price: USD 30-300 /pcs
Payment Terms: T/T
Supply Ability: 500000 pcs per year
Detail Information
Packaging Details:
1.2mX2.4m wooden Case packaging
Highlight:

240W Photovoltaic Curtain Wall

,

2.03A Photovoltaic Curtain Wall

,

Facade Solar Panel 1000V

Product Description

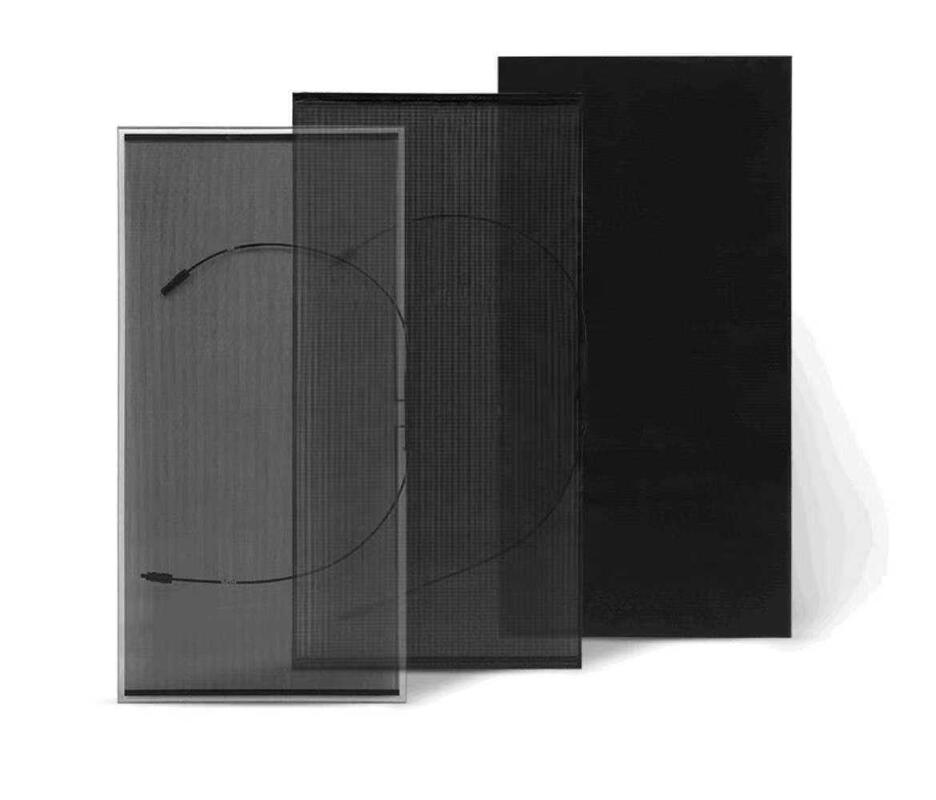

240W BIPV Glass Curtain Wall Transparent Facade Solar Panel PV Curtain Wall Module

Transform building exteriors with this premium transparent BIPV glass curtain wall PV facade module. It comes with fully customizable rich tones and stone-mimic appearances, fitting any architectural style perfectly. Built with Class A fire safety grade, strong wind resistance, wide working temperature range, and backed by a 25-year power output warranty.

Specifications
Parameter details
Maximum Power 240W
Short-circuit Current 2.03A
Open-circuit Voltage 178.3V
Maximum Power Point Current 1.81A
Maximum Power Point Voltage 136V
Power Tolerance ±5W
Maximum System Voltage 1000V
Maximum Rated Fuse Current 5A
Application Class A
Key Features
  • Multiple color options available, stone-like texture seamlessly matches various architectural styles
  • Class A fire-proof grade, strong wind resistance, wide working temperature range, backed by 25-year power output warranty
  • Low temperature coefficient, excellent weak-light performance, low sensitivity to sunlight angle changes
  • Integrates power generation and eco-functions, transforms every building into an on-site clean green power station
Applications
  • Commercial building exterior curtain walls & decorative facades
  • Residential villa and private house rooftop & facade installation
  • Renovation & style matching for traditional architecture projects
  • BIPV integrated low-carbon & eco-friendly new building construction
