380W Colored Photovoltaic Curtain Wall Modules PV Facade Glass Photovoltaic Panels

380W Colored Photovoltaic Curtain Wall Modules PV Facade Glass Photovoltaic Panels

Brand Name: Welons
Model Number: Custom
MOQ: 100 pcs
Price: USD 30-300 /pcs
Payment Terms: T/T
Supply Ability: 500000 pcs per year
Detail Information
Place of Origin:
China
Maximum Power Output :
380W
Open Circuit Voltage:
40.8V
Short Circuit Current:
11.35A
Operating Voltage:
34.8W
Operating Current:
10.92A
Maximum System Voltage:
1500V
Packaging Details:
1.2mX2.4m wooden Case packaging
Highlight:

380W Colored Photovoltaic Curtain Wall

,

Photovoltaic Curtain Wall

,

PV Facade glass photovoltaic panels

Product Description

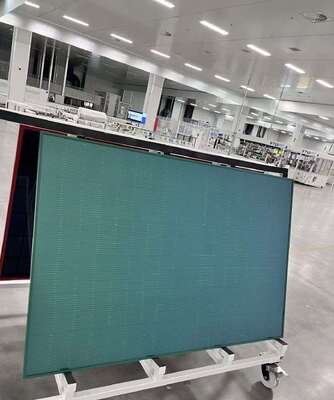

380W Colored Photovoltaic Glass Modules PV Facade Panels

Our innovative BIPV solar glass merges sleek aesthetics with efficient power generation, turning windows, facades and roofs into clean energy surfaces.

Crafted from tempered glass and high-performance cells, it supports custom colors, 10%-75% adjustable transparency and sizes. Delivers 100-300W/m² output, CE/IEC certified, fully weather, fire and UV resistant. Lower your energy costs and carbon footprint. Bulk discounts ready. Contact us for a quote today!

Specifications
Parameter Details
Maximum Power Output 380W
Open Circuit Voltage 40.8V
Short Circuit Current 11.35A
Operating Voltage 34.8W
Operating Current 10.92A
IP Rating IP67
Maximum System Voltage 1500V
Length of Connector 90cm
Key Features
  • Fully customizable in texture pattern, dimension, and glass thickness per your design requirements.
  • Perfect replacement for most existing building exterior facade finishing materials.
  • Excellent long-lasting color retention.
  • Low refractive index to maintain stable and high power generation efficiency.
Applications
  • BIPV building integrated photovoltaic facade & exterior curtain wall systems.
  • New green & low-carbon zero-emission building construction.
  • Traditional architectural style matching and facade material replacement.
  • Distributed clean power generation for modern urban architecture.
