45W Photovoltaic Curtain Wall 40% Transparent CdTe BIPV Low E Insulated Glass Panels 1200x600mm

45W Photovoltaic Curtain Wall 40% Transparent CdTe BIPV Low E Insulated Glass Panels 1200x600mm

Brand Name: Welons
Model Number: Custom
MOQ: 100 pcs
Price: USD 30-300 /pcs
Payment Terms: T/T
Supply Ability: 500000 pcs per year
Detail Information
Rated Powe:
45W
Open Circuit Voltage:
64V
Short Circuit Current:
1.1A
Max Power Voltage:
49.34V
Max Power Current:
0.94A
Light Transmittance:
40% (10%/20%/60% Customizable)
Junction Box:
Side-mounted, Customizable Position/length
Connectors:
MC4-compatible Cable
Packaging Details:
1.2mX2.4m wooden Case packaging
Highlight:

45W Photovoltaic Curtain Wall

,

Photovoltaic Curtain Wall 40% Transparent

,

low e insulated glass panels 1200x600mm

Product Description

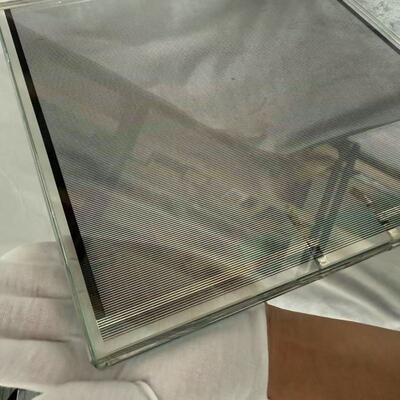

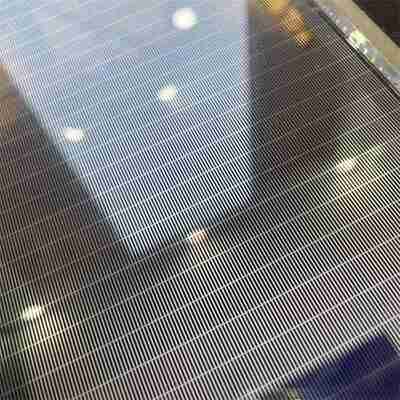

45W 40% Transparent CdTe BIPV Solar Glass 1200x600mm Insulated Low-E Window Panel

This 45W 40% Transparent CdTe BIPV Solar Glass is a compact, energy-efficient building-integrated photovoltaic panel, specifically designed for window and small-scale curtain wall applications. Built with advanced CdTe thin-film technology and a premium insulated Low-E structure, it balances natural light transmission, thermal insulation, and clean power generation—ideal for energy-saving building facades, skylights, and atriums.

Structure
Size 1200*600mm
Thickness 47mm
Weight 42.5kg
Front Glass 5mm Ultra-white Tempered Glass
Back Glass 5mm Low-E Tempered Glass
Insulation Layer 5mm Argon-filled Air Space
Key Features
  • Insulated Low-E Hollow Structure: 5mm ultra-white tempered glass + CdTe chip + 5mm argon-filled air layer + 5mm Low-E glass, delivering superior thermal insulation and noise reduction compared to standard double-glass panels.
  • Compact Modular Size: 1200*600mm small-format design for flexible installation, perfect for window openings, small skylights, and custom facade layouts.
  • CdTe Thin-Film Advantage: Excellent low-light response and wide-angle light absorption, ensuring stable power output even in cloudy conditions or indirect sunlight.
  • 40% Balanced Transmittance: Optimized light transmission to let natural daylight in while maintaining reliable 45W power generation.
  • Durable & Safe Build: 1.52mm PVB encapsulation, A-level fire rating, and wide operating temperature (-40°C to +85°C) for long-term performance.
Application Scenarios
  • Building windows, sunrooms, and atrium skylights
  • Small-scale curtain walls and facade openings
  • Green building energy-saving renovation projects
  • Commercial/public building daylighting and power integration
