5kWh Residential Battery Storage System Home Battery Storage For Solar

Brand Name:	Welons
Model Number:	Custom
MOQ:	100 pcs
Price:	USD 30-300 /pcs
Payment Terms:	T/T
Supply Ability:	500000 pcs per year

Detail Information

Product Description

Detail Information

Rated Energy:

5.12kWh

Nominal Capacity:

100Ah 300Ah

Current:

100A

Protection Level:

IP51

Product:

Residential Energy Storage

Output Frequency:

50/60Hz

Packaging Details:

1.2mX2.4m wooden Case packaging

Highlight:

5kWh residential battery storage system

5.12kWh residential battery storage system

610MM home battery storage for solar

Product Description

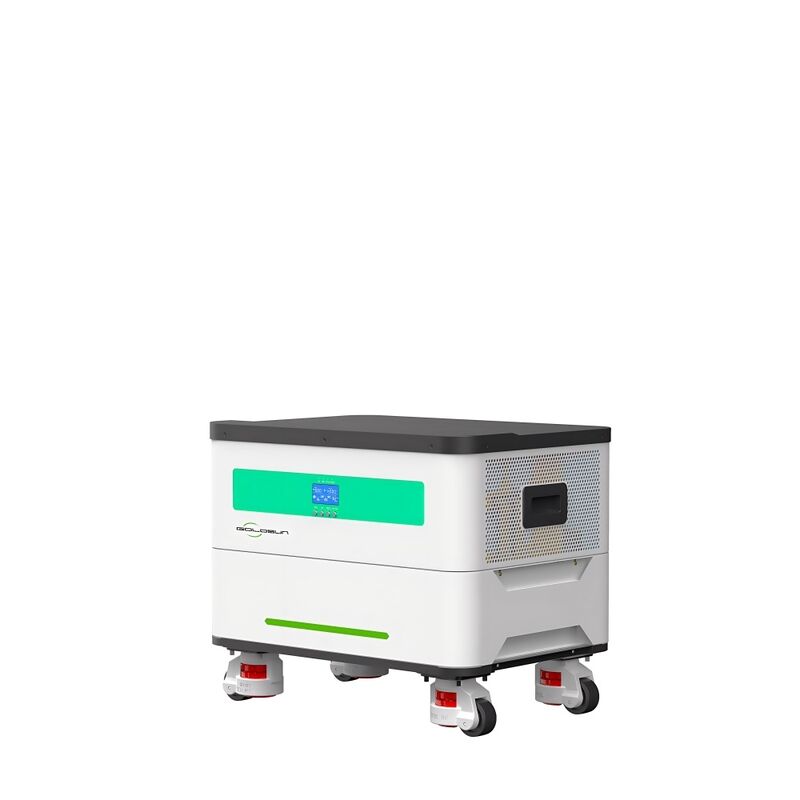

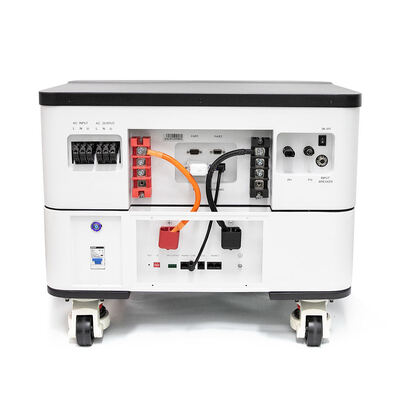

Stackable 5kWh LiFePO4 Battery with 5kW Hybrid Inverter All-in-One Energy Storage System

Topbrandbattery, A-grade quality, 6000 cycles. Modular mobile and stacked design, 1 layer of batteries, easy to install and expand plug-and-play, saving in the moving space/high charging and discharging current. Suitable for solar energy storage systems, with various safety and certification real-time monitoring, CAN 2.0/RS485 communication interface.

Battery Specifications

Rated Energy	5.12kWh
Rated Voltage	51.2V
Rated Capacity	100Ah
Max Charge	100A
Cell Type	3.2V 100Ah
Protection Grade	IP51
Dimensions	610440505mm
Weight	79.9kg
Operating Temp	20℃~60℃

Inverter Specifications

Rated Output Power	5kW
Output Voltage	220/230/240V
Output Frequency	50/60Hz
Max Conversion Efficiency	93.6%
MPPT Efficiency	99.9%
Protections	Overcurrent/Short Circuit/Overvoltage/Remote Shutdown
Inverter Dimensions	610440225mm
Gross Weight	21.5kg

Key Features

Superior Safety: Integrated BMS/PCS/EMS with full protection for reliable operation.
High Efficiency: 99.9% MPPT efficiency, low energy loss, maximizes solar utilization.
Wide Adaptability: -20℃~60℃ working range, ideal for hot & humid climates.

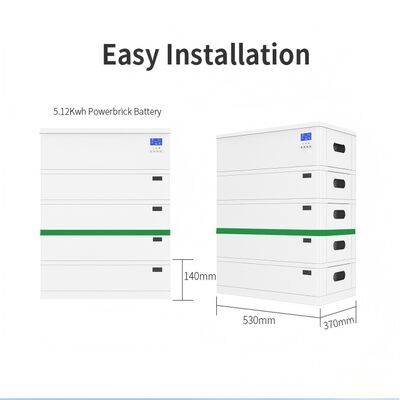

Easy Installation: Compact stackable design, simple wiring, low maintenance cost.
Long Lifespan: Premium LiFePO4 cells, IP51 rated, durable for long-term use.
