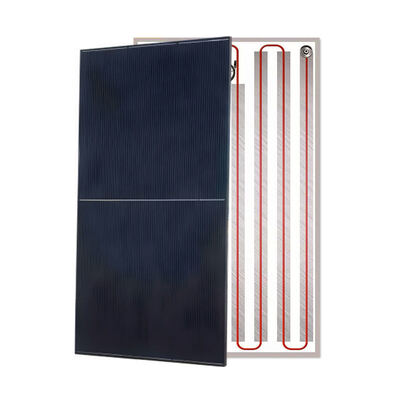

700W Hybrid PVT System PanelS Hybrid Photovoltaic Solar Heat Collector 35.44V

Brand Name:	Welons
Model Number:	Custom
MOQ:	100 pcs
Price:	USD 30-300 /pcs
Payment Terms:	T/T
Supply Ability:	500000 pcs per year

Detail Information

Product Description

Detail Information

Place of Origin:

China

Maximum Power:

600W

Maximum Power Voltage:

35.44V

Maximum Power Current:

16.93A

Open-circuit Voltage:

43.77V

Short-circuit Current:

17.83A

Operating Temperature:

-40℃~+85℃

Packaging Details:

1.2mX2.4m wooden Case packaging

Highlight:

700W hybrid pvt system

hybrid pvt panels 35.44V

Photovoltaic solar heat collector

Product Description

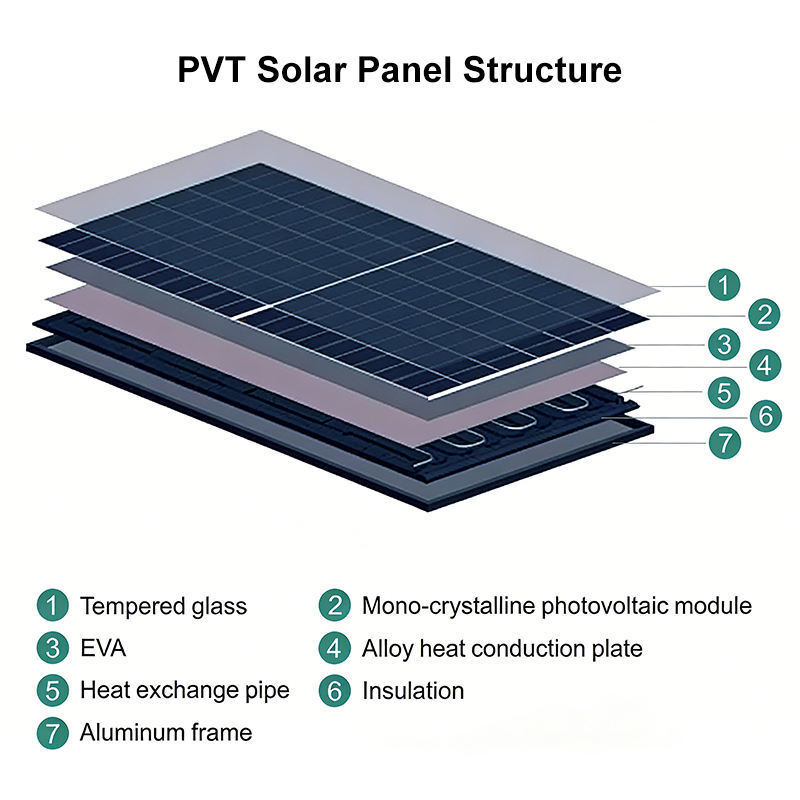

Upgrade to this 700W hybrid PVT photovoltaic-thermal solar panel for peak solar energy efficiency.It precisely converts sunlight directly into usable DC power with nearly zero intermediate energy loss. A purpose-built bottom full-coverage heat collector then recovers all residual operating heat without blind spots. This dual design unlocks combined electricity and heating output, ideal for all residential and commercial green energy setups.

Specifications

Parameter	Details
Maximum Power	700W
Maximum Power Voltage	40.50V
Maximum Power Current	17.29A
Open-circuit Voltage	48.60V
Short-circuit Current	18.32A
Module Efficiency	22.50%
Operating Temperature	-40℃~+85℃
Power Tolerance	0~+3%
Maximum System Voltage	1000/1500VDC

Key Features

High Hybrid Efficiency:22.50% STC module efficiency, 700W dual power & thermal output.
Extreme Climate Adaptable:Stable performance across -40℃ ~ 85℃.
Low Temperature Loss:Minimal power decay with temperature rise.
Long-Term Reliability:Optimized NOCT for daily continuous operation.
