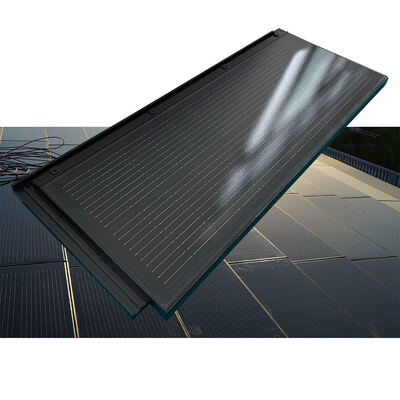

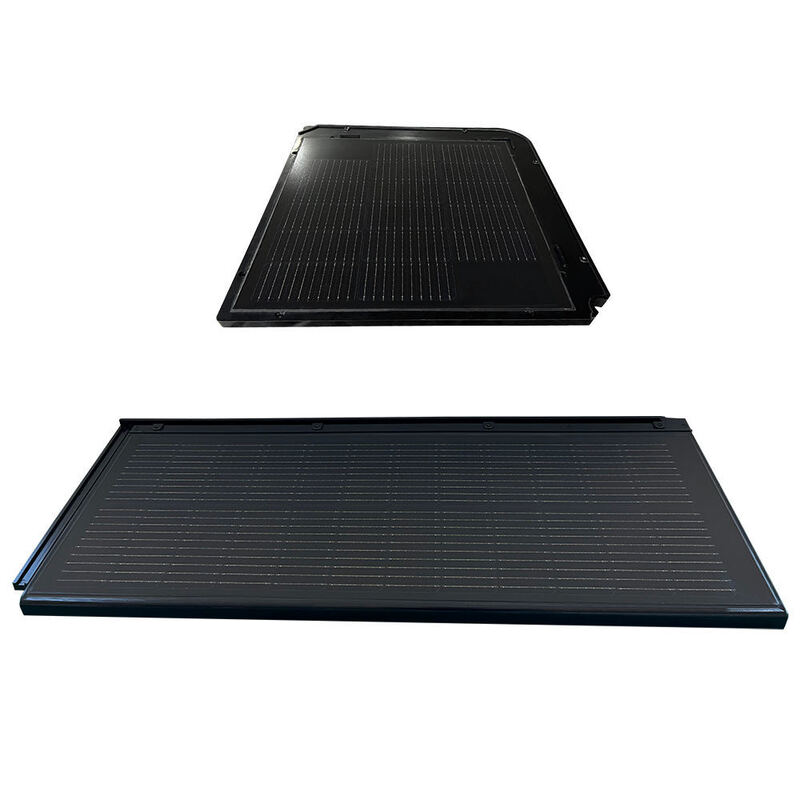

90W Photovoltaic Roof Tile PV Tiles Solar Cell Module Roof Tiles
Our 90W high-efficiency photovoltaic roof tile features invisible back-contact tech for a sleek, seamless, unobtrusive roof blend.Ultra-durable tempered glass construction is walkable, anti-slip, and fully weatherproof against harsh conditions.With over 24% module efficiency, it delivers stable output in low light & high temperatures. Fully globally certified, backed by a 12-year warranty for long-term reliable clean rooftop power.
Specifications
| Parameters | Details |
|---|---|
| Unit Maximum Power | 90W |
| Maximum Power Per Square Meter | 180W |
| Open Circuit Voltage | 36.18V |
| Short Circuit Current | 3.05A |
| Maximum Power Point Voltage | 30.78V |
| Maximum Power Point Current | 2.92A |
| Product Dimension | 1424×437×21(±1)mm |
| Module Thickness | 7.5mm |
| Single Module Weight | 12(±0.5)kg |
| Weight Per Square Meter | 24(±0.5)kg |
Key Features
Transparent back-contact tech, seamless flush roof installation, premium all-black aesthetic
90W single tile, 180W per m²; 24%+ efficiency IBC/HJT high-performance cells.
Excellent weak light & high temperature adaptability for steady all-day power generation.
Tempered glass build, walkable anti-slip, impact/corrosion resistant, full waterproof sealing.
Applications
Residential house & villa rooftop full solar roofing renovation & new installation.

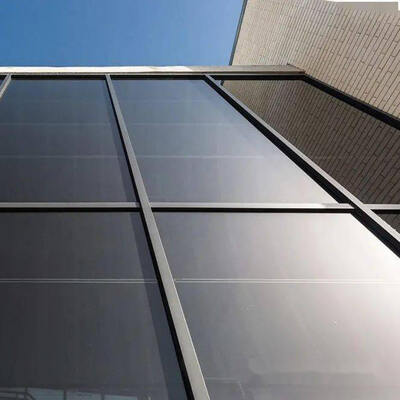

BIPV integrated green building & low-carbon architectural projects.
Commercial building rooftop energy-saving and power generation retrofits.
